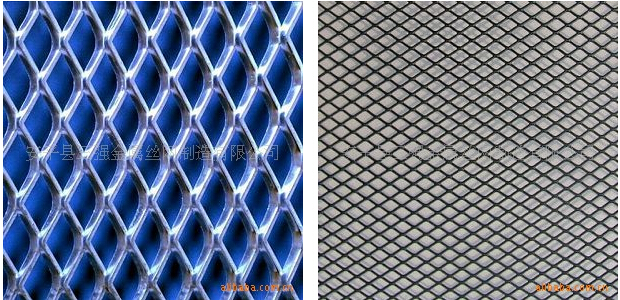

下面表格展示的主要是低碳钢钢板网的产品图片、以及产品规格参数表。
| 低碳钢（铁）钢板网规格表 | ||||
|
短节距（mm） |
长节距（mm） |
板厚（mm） |
梗宽（mm） |
重量（kg/m2） |
|
2.3 |
3 |
0.4 |
0.4 |
1.1 |
|
0.4 |
0.3 |
0.82 |
||
|
2.5 |
4 |
0.4 |
0.4 |
1.0 |
|
0.5 |
0.3 |
0.94 |
||
|
2.5 |
5 |
0.4 |
0.3 |
0.75 |
|
3 |
5 |
0.5 |
0.4 |
1.0 |
|
3 |
6 |
0.5 |
0.5 |
1.3 |
|
0.6 |
0.5 |
1.57 |
||
|
4 |
8 |
0.5 |
0.6 |
1.17 |
|
5 |
10 |
0.5 |
0.45 |
0.71 |
|
0.6 |
0.6 |
1.13 |
||
|
6 |
12.5 |
0.7 |
0.6 |
1.25 |
|
7 |
12.5 |
0.6 |
0.9 |
1.21 |
|
0.8 |
0.5 |
0.89 |
||
|
0.8 |
0.8 |
1.44 |
||
|
7 |
15 |
0.7 |
0.7 |
1.1 |
|
8 |
12.5 |
0.8 |
0.75 |
1.19 |
|
8 |
16 |
0.5 |
1 |
0.98 |
|
0.5 |
1.2 |
1.18 |
||
|
0.8 |
0.8 |
1.2 |
||
|
8 |
12.5 |
0.8 |
0.8 |
1.25 |
|
9 |
16 |
0.8 |
1.1 |
1.55 |
|
10 |
20 |
0.5 |
1 |
0.78 |
|
0.8 |
1.3 |
1.6 |
||
|
12 |
25 |
0.4 |
1.2 |
0.63 |
|
0.7 |
1.2 |
1.1 |
||
|
15 |
30 |
1.2 |
2.5 |
3.14 |
|
20 |
30 |
0.5 |
0.8 |
0.32 |
|
1.1 |
1.8 |
1.55 |
||
|
25 |
50 |
1.0 |
2 |
1.25 |
|
26 |
60 |
1.4 |
2.5 |
2.1 |
|
29 |
80 |
1.5 |
3.25 |
2.64 |
|
36 |
100 |
2.0 |
4.05 |
3.53 |
|
44 |
120 |
2.5 |
4.95 |
5.30 |
|
3 |
6 |
6.42 |
||
|
55 |
150 |
3 |
5 |
4.27 |
|
4 |
6 |
6.85 |
||
|
65 |
180 |
4 |
5 |
4.83 |
|
5 |
7 |
11.84 |
||
|
76 |
200 |
5 |
7 |
7.23 |
|
80 |
200 |
6 |
8 |
9.42 |
